Small Wind Turbine Construction In Process

Well, the small wind turbine construction project continues. Dan and Bill from Residential Wind Power are looking to complete the project before Christmas. The tower from Rohn tower is now manufactured and on its way and RWP has the turbine from Ventera Energy on hand, ready for final connection to the tower.

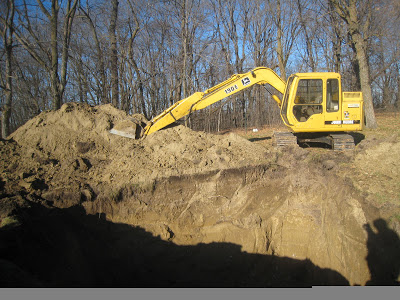

First Dan dug a really deep hole, about 14 feet across and 10 feet deep for the foundation. This step is obviously important, considering the foundation not only needs to hold up a 110-foot tower with a 500 lb turbine on top, but also keep that tower up nice and straight in some major winds.

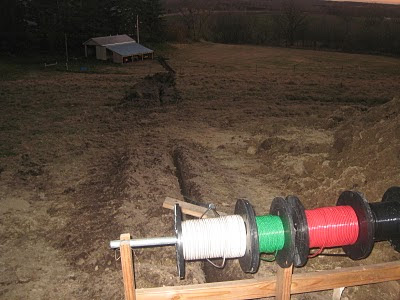

After some serious digging, Dan and Bill poured the foundation. Since this is a tripod tower with three legs, three pylons were put in place with mounts on top to attach to the tower. After putting in the foundation, Dan and Bill ran the wire about 300 feet down to our woodshed where the inverter will be placed. Power will run down the line to the inverter, become transformed into usable energy and then run the short distance to our main junction box. This was done just in time before freeze up. Once the ground froze, this would have been impossible.
